使用特点(Features of Forming Networks):
- 使用寿命长、耐损耗、网耗低(long life, resistance to wear and tear, low consumption of network)。
- 抗疲劳强度高,耐酸,耐弱碱(anti-fatigue, acid and alkali resistance)。
- 网痕轻,成型质量好(light net mark, good shaping quality)。
- 重量轻,运输方便,套网操作简便(light weight, easy transportation, simple operation)。
网样图片如下:
Paper side 正面

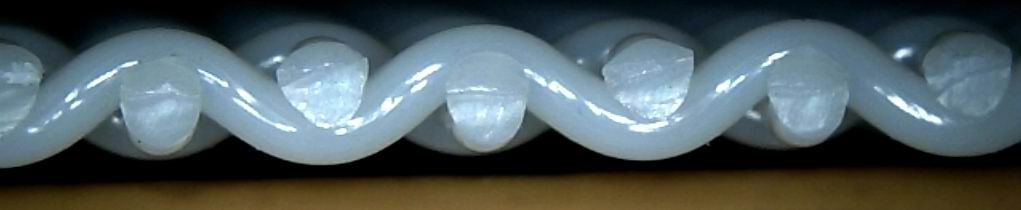

Side 侧面
BW12402
型号Type:BW12402
直径Diameter(mm)
经线Warp:0.40㎜/纬线Weft:0.40㎜
密度Density (根/cm)
经线Warp:12.2/纬线Weft:12.2
强度Bursting strength(N/5x20cm):经线Warp 5889.25N/纬线Weft 4815N
伸长率(Elogation):经线Warp 22.6%/纬线Weft 34.2%
厚度Thickness:0.76mm
重量Weight:441g/㎡
透气量(Air Permeability):3555 L/㎡S
接口方式(Joint):无端接口(Endless)、钢扣(Clipper)
用途(Usage):造纸烘干、无纺布成型、输送(nonwoven cloth punching; forming of paper making; conveyor; dryer; sewage treatment)
直径Diameter(mm)
经线Warp:0.40㎜/纬线Weft:0.40㎜
密度Density (根/cm)
经线Warp:12.2/纬线Weft:12.2
强度Bursting strength(N/5x20cm):经线Warp 5889.25N/纬线Weft 4815N
伸长率(Elogation):经线Warp 22.6%/纬线Weft 34.2%
厚度Thickness:0.76mm
重量Weight:441g/㎡
透气量(Air Permeability):3555 L/㎡S
接口方式(Joint):无端接口(Endless)、钢扣(Clipper)
用途(Usage):造纸烘干、无纺布成型、输送(nonwoven cloth punching; forming of paper making; conveyor; dryer; sewage treatment)
