产品优点(Features):
- 过滤带抗拉强度大,抗褶皱力强,网布单丝均匀,柔韧度好。(The belt have high tensile strength, good fold face, perfect flexicity and the wires permutation uniformity.)
- 滤带接口采用胶合处理,做工精良,使用进口乳胶,轻薄,不易脱落。接头钢筘比较细,强度大,耐磨。接口处厚度均匀轻薄,不易伤刮刀。(The joint of our belt is bonding by import glue, this glue is very tight and strong. The clipper joint have good abrasion resistance, and not easy to broken.)
- 滤带两边所用胶水为进口乳胶,柔软均匀,不易。脱落。(The side of our belt also welding by import glue, have good adhension.)
-
网样图片如下:

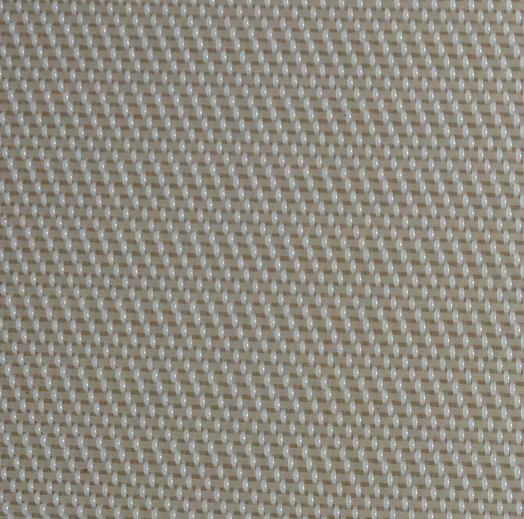

Paper side 正面
Machine side 反面

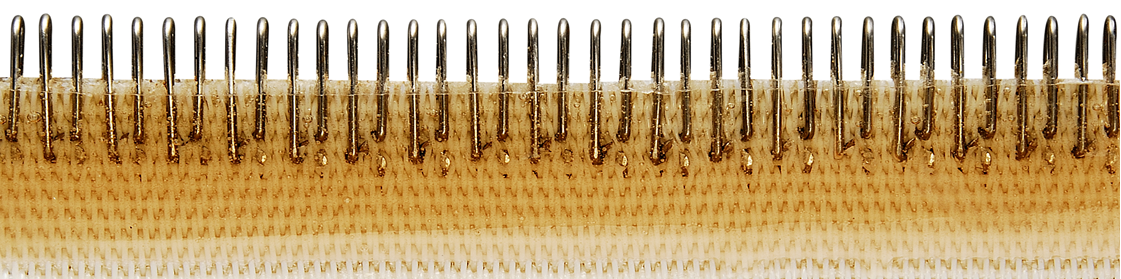

接口Joint
WJW4035505
型号Type:WJW4035505
直径Diameter(mm)
经线Warp:0.35㎜
纬线Weft:0.50㎜
密度Density (根/cm)
经线Warp:42.5
纬线Weft:11
厚度Thickness:1.44mm
重量Weight:780 g/㎡
经强度Bursting strength(N/5x20cm):8180N
纬强度Bursting strength(N/5x20cm):4475N
经伸长率(Elogation):37.77%
纬伸长率(Elogation):31.27%
透气量(Air Permeability):1149.5 L/㎡S
接口方式(Joint):钢扣接口(Clipper pin)
用途(Usage):污水处理(Sewage Treatment factories)
直径Diameter(mm)
经线Warp:0.35㎜
纬线Weft:0.50㎜
密度Density (根/cm)
经线Warp:42.5
纬线Weft:11
厚度Thickness:1.44mm
重量Weight:780 g/㎡
经强度Bursting strength(N/5x20cm):8180N
纬强度Bursting strength(N/5x20cm):4475N
经伸长率(Elogation):37.77%
纬伸长率(Elogation):31.27%
透气量(Air Permeability):1149.5 L/㎡S
接口方式(Joint):钢扣接口(Clipper pin)
用途(Usage):污水处理(Sewage Treatment factories)
