脱硫网带 产品特点:
- 采用特殊截面的单丝和复丝混纺而成,可截留2~20微米的物料。(weave by
special section monofilament and multifilament wires. it can retain 2-20 micron
Material.)
- 透气性能好;生产效率高。滤饼含水率低;物料极易剥离。(perfect air permeability
and high productiove efficience. the moisture content of filter cakes is very low, so
the filter material is easy to peel off. )
- 采用高黏度聚酯为原料,使得产品耐磨性能好,强度高, 滤带极易再生。(select
high viscosity PET as raw material, so it have good abrasion resistance and strength.
filter belt is easy to reproducible)
- 滤带在安全使用温度并受一定的拉力时,滤带形状稳定性好。(this filter belt have
good steady property, while the belt bear tension strength in availiable temperature.)
- 选用316L不锈钢钢扣接头及特制盖布使得产品接头牢固,不易破真空,使用寿
命长。
网样图片如下:
Paper side 正面
|
Machine side 反面
|

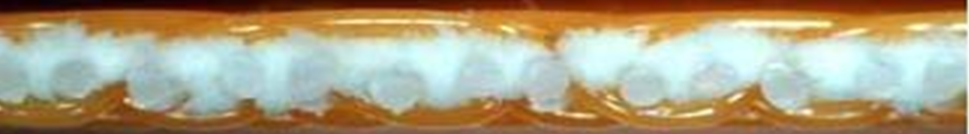

Side 侧面
Joint 接口
|
HD004-1
型号Type:HD004-1
直径Diameter(mm)
经线Warp:0.50㎜
纬线Weft:0.50㎜聚酯单丝 \600D涤纶复丝
密度Density (根/cm)
经线Warp:28
纬线Weft:21
厚度Thickness:1.70mm
重量Weight:1420 g/㎡
经强度Bursting strength(N/5x20cm):5000N
纬强度Bursting strength(N/5x20cm):8400N
经伸长率(Elogation):11.9%
纬伸长率(Elogation):24.4%
透气量200Pa(Air Permeability):200-350 L/㎡S
接口方式(Joint):钢扣(clpper joint)
用途(Usage):电厂专用脱硫脱硝(desulfurization and denitrification in power plants)
直径Diameter(mm)
经线Warp:0.50㎜
纬线Weft:0.50㎜聚酯单丝 \600D涤纶复丝
密度Density (根/cm)
经线Warp:28
纬线Weft:21
厚度Thickness:1.70mm
重量Weight:1420 g/㎡
经强度Bursting strength(N/5x20cm):5000N
纬强度Bursting strength(N/5x20cm):8400N
经伸长率(Elogation):11.9%
纬伸长率(Elogation):24.4%
透气量200Pa(Air Permeability):200-350 L/㎡S
接口方式(Joint):钢扣(clpper joint)
用途(Usage):电厂专用脱硫脱硝(desulfurization and denitrification in power plants)
