产品优点Features

  1. 1.过滤带抗拉强度大,抗褶皱力强,网布单丝均匀,柔韧度好。(The belt have high tensile strength, good fold face, perfect flexicity and the wires permutation uniformity.)
  2. 2.滤带接口采用胶合处理,做工精良,使用进口乳胶,轻薄,不易脱落。接头钢筘比较细,强度大,耐磨。接口处厚度均匀轻薄,不易伤刮刀。(The joint of our belt is bonding by import glue, this glue is very tight and strong. The clipper joint have good abrasion resistance, and not easy to broken.)
  3. 3.滤带两边所用胶水为进口乳胶,柔软均匀,不易。脱落。(The side of our belt also welding by import glue, have good adhension.)
  4. 4.滤带表面平滑,泥饼易剥离,滤带易冲洗。滤带径线方向不易变形,不起拱,不褶皱。使用寿命长具有耐酸、耐碱、耐磨损、耐高温(可在180℃的环境中长时间操作(The surface of our belt is very smoothy, so the filter cake is easy to peel off and our belt is easy to clean. The structure is steady and have long time service life, with good acid resistance, alkali resistance,abrasion resistance and high temperature (it can operating under 180℃))

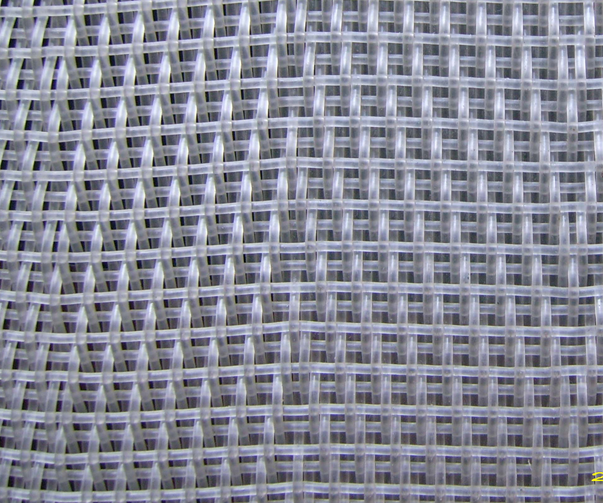

    网样图片如下:

    Paper side 正面

    Machine side 反面

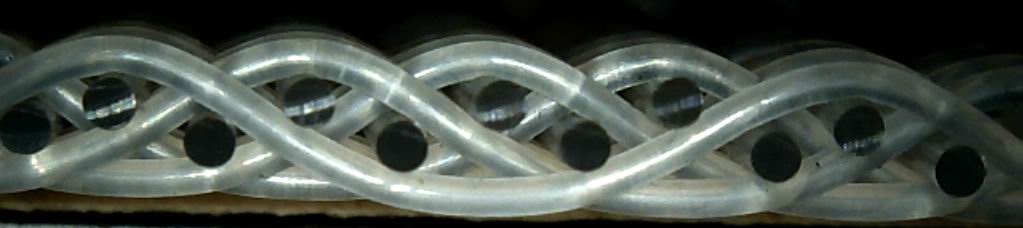

    Side 侧面

首页    压滤机滤带    HD009

HD009

型号Type:HD009 Nylon
直径Diameter(mm)
经线Warp:0.90㎜
纬线Weft:1.05㎜
密度Density (根/cm)
经线Warp:12
纬线Weft:5
厚度Thickness:3.1m
重量Weight:2026/㎡
经强度Bursting strength(N/5x20cm):8000N
纬强度Bursting strength(N/5x20cm):4300N
经伸长率(Elogation):18%
纬伸长率(Elogation):27%
透气量(Air Permeability):3800L/㎡S
接口方式(Joint):钢扣接口(Clipper pin)、无端(Endless)
用途(Usage):污水处理(Sewage Treatment factories)
